Product Introduction:
●Size:
2 meters for the main arm, 2.6 meters for the forearm, 5 meters for the overall arm length, 180-210° rotation of the base, 320° rotation for the rotating arm, large lifting stroke of the forearm, foldable and stored against the wall, without affecting the driving operation.
●Drive mode:
self-balancing welding space arm, using spring self-balancing technology, so that the wire feeder and welding torch can be easily transferred within the operating range and hover at any position.
●Function:
Integrate the scattered wire feeder and cable on the ground, greatly reduce the physical consumption of welding workers and the potential safety hazards of wire pipes. Expand welding and improve welding efficiency.
●Scope of application:
aerospace, construction machinery, steel structure, energy equipment and other welding industries
●Customizable:
The specific color size can be customized according to actual needs

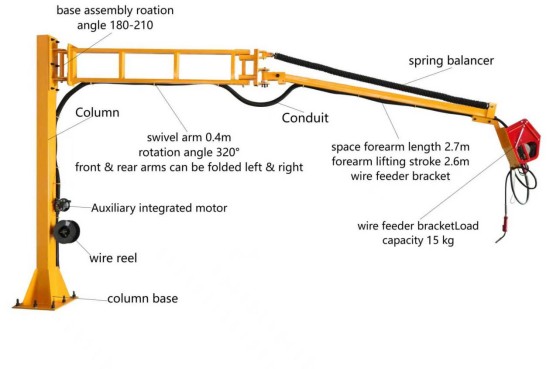

Parameter diagram:

Parameter Table:

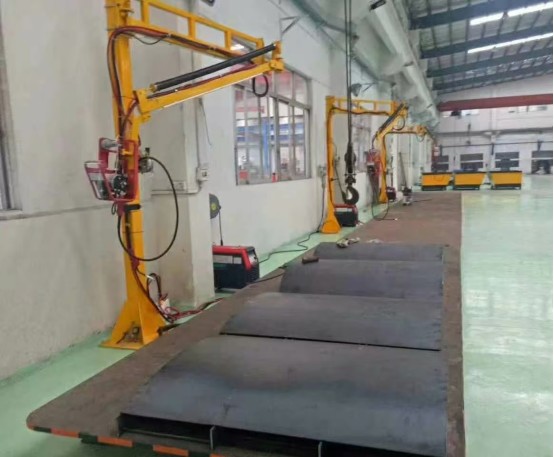

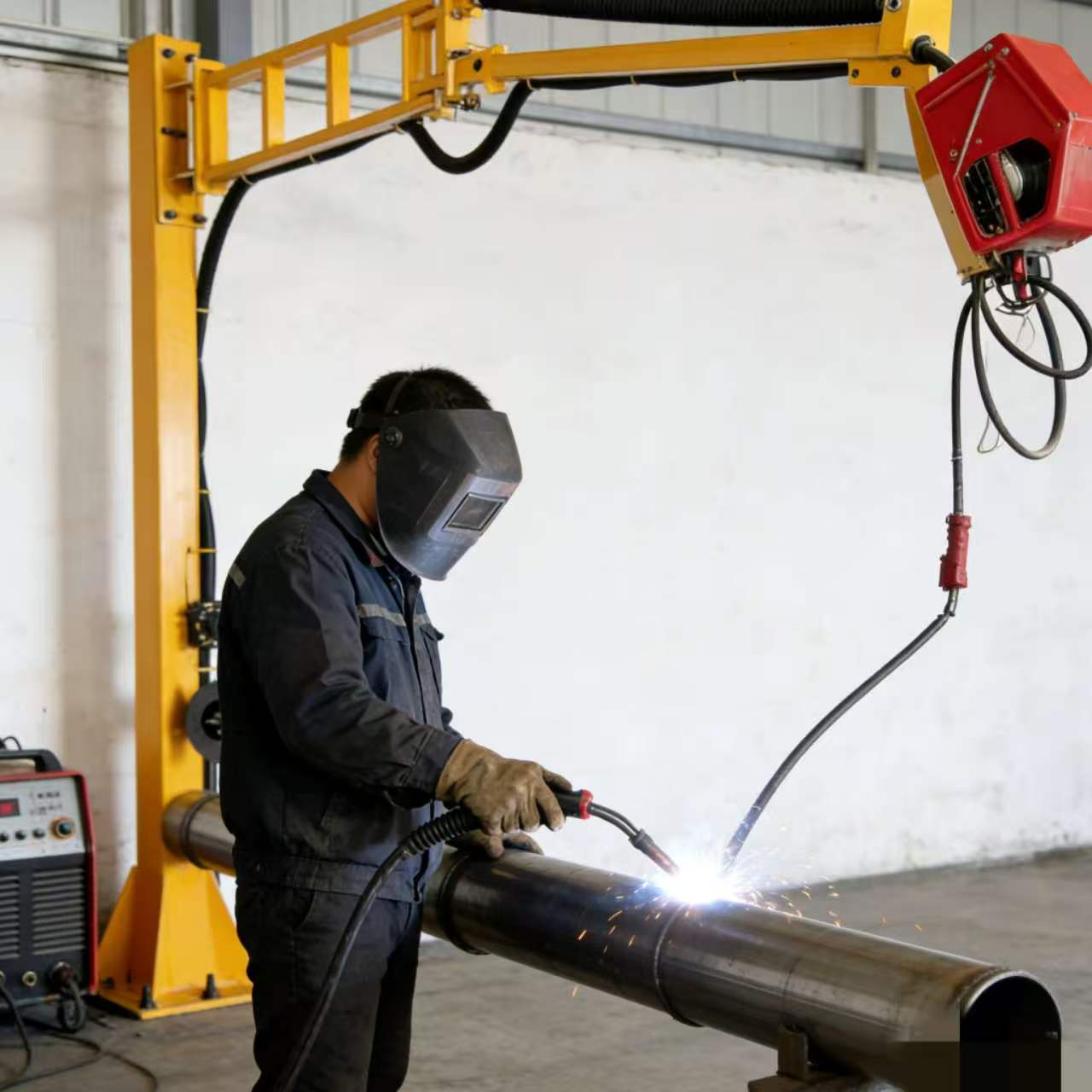

Case diagram:


Q&A:
●Q:What is self-balancing?
A:The self-balancing type uses spring self-balancing technology to adjust the lifting angle
●Q:How much does the wire feeding bracket weigh?
A:The self-balancing welding space arm wire feeding bracket can weigh up to 15kg, which meets normal use.
●Q:Does the welding cover a wide area?
A:The whole arm is 5 meters long and the lifting height is 2.5 meters, which meets the welding needs in multiple directions
●Q:What are the specifications?
A:There are many specifications and sizes, which can be customized according to specific color and size requirements
●Does it take up space?
A:It does not take up space, the welding machine and cables are all hung on the arm, and the self-balancing welding space arm can be folded and stored against the wall, and the whole welding area is safe and tidy
●Q:What is the main function of welding space arms?
A:Put the welding machine and wire feeder welding gun on the welding space arm, follow the welder, cover a wide area, save effort, easy to store, reduce the wear of welding materials, and reduce potential safety hazards
●Q:What is the angle of the base and swivel arm?
A:The base rotates 180°-210° left and right, the rotation angle of the rotating arm reaches 320°, and the lifting height is 2.5 meters.
